Rigid 80 rail – side/floor mount – 100mm
)
)
System overview

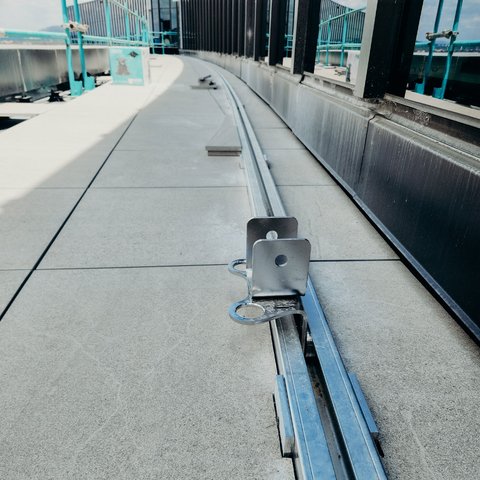

The OH27 rigid 80 rail is a proprietary low profile system that provides efficient fall arrest and rope access for multiple users accessing facades, roofs and machinery for maintenance.
Fall arrest/rope access use
21kN rated (fall arrest)/18kN rated (rope access)
Side/floor mount – 100mm
Up to 600kg per trolley point load
Increased point load ability for glass replacement requirements
Curving ability down to 1000mm radius
Ideal for compact and out of sight requirements
Simple installation using the t-bolt mounting system to outer cavity wall
Allows attachment of suspended ceiling systems to side of track where required
Weight: 5.9kg/per linear metre of rail section
)
Key features
Click the features to learn more
)
)
)
)
)
)
)
Take the risk out of height safety designs
Our height safety system design specialists have a deep understanding of industry requirements and help you meet your obligations for fully compliant systems right from the start.
Exceed compliance
Minimise ongoing costs
Reduce rework
Protect lives
)
)
