Davits and needles
Kattsafe's davits and needle systems are innovative, flexible, and relocatable rope access systems designed to enhance facade maintenance.
Developed in partnership with rope access technicians, these systems provide safe access over parapets and curtain walls. They feature a low visual impact from ground level and can be easily stored away when not in use.
:focal(1093x711:1094x712))
)
)
)
)
)
)
)
)

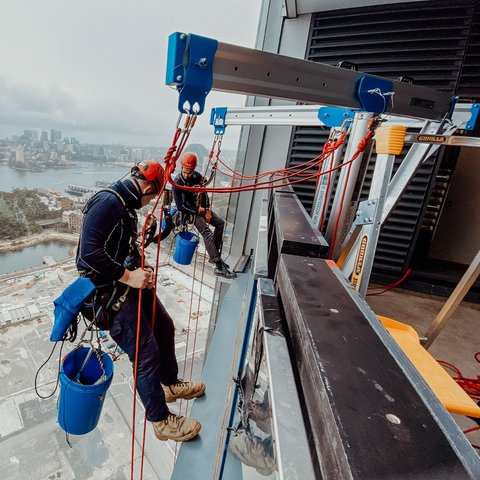

Designed as a cantilevered anchorage device over balustrades, parapets and curtain walls for rope access work.
)
Multiple davit mounting options to suit specific site and project requirements.
)
Designed for rope access on roofs where the load needs to be spread to avoid damaging the roof area, and for roofs with no parapets.
)
Multiple needle mounting options to suit specific site and project requirements.
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Flexible and relocatable rope access systems made for easy operation and ultimate durability
Kattsafe davit systems have been designed to be easy to manoeuvre yet extend well clear over the edge of the building so maintenance workers have reach to attend to more space per descent, making work more efficient. Other key additional highlights include:
Wide range of sizes, heights, and reaches
Various davit mounting options such as concrete, floor, wall, metal deck, and cast-in
Modular design allows for configurable solutions
Backed by a 10-year system warranty
Can be incorporated with rigid rail systems
Compliant to Australian and New Zealand Standards AS/NZS 5532:2013 AS/NZS/ISO22846 and AS/NZS1891
10 year system warranty
Enhanced efficiency and user-friendliness for maintenance crews
)
Effortless handling and relocation
Constructed from lightweight aluminium components, Kattsafe davits and needles are designed for easy handling, assembly, and disassembly. Comprising just a few main components with easy-use locking pins, they are simple to move around from base to base or between areas.
)
Confidently keep control
When working at heights it is imperative that the user is able to easily handle components without the fear of losing control of their equipment. Needle telescopic boom allows an additional 500mm of extension. Adjustable davit boom anchor enables safe access over parapets. Standard davit arms are rated to withstand a 12kN rope access load. Models with additional strengthening can be rated at 15kN.
)
Engineering systems you can rely on
The Kattsafe davits and needles are engineered and designed to conform with requirements of the Australian and New Zealand Standards AS/NZS 5532:2013 AS/NZS/ISO22846, AS/NZS1891 and relevant codes of practices and guidelines. Rigorous testing based on the requirements of Australian Standard AS/NZS 1891 and AS/NZS 5532 where they are both dynamically and statically load tested.
)
)
View our davit and needle systems
)
DavitsDesigned as a cantilevered anchorage device over balustrades, parapets and curtain walls for rope access work.
)
Davit mounting optionsMultiple davit mounting options to suit specific site and project requirements.
)
NeedlesDesigned for rope access on roofs where the load needs to be spread to avoid damaging the roof area, and for roofs with no parapets.
)
Needle mounting systemsMultiple needle mounting options to suit specific site and project requirements.
Height safety is everyone’s responsibility
Creating a safe environment for those working at height requires everyone's involvement. From building design through to installation and ongoing improvements and maintenance, we all play a role.
:focal(555x384:556x385))
Learn why height access and fall protection should be front of mind and what your obligations by law are.
Have a question about davit and needle systems? Talk to us today.
Our experts can help you select a fit-for-purpose solution for your next project to make working at heights safer and fully compliant to the highest standards.
