Needle 400mm a-frame
)
)
)
)
)
)
)
)
)
)
System overview

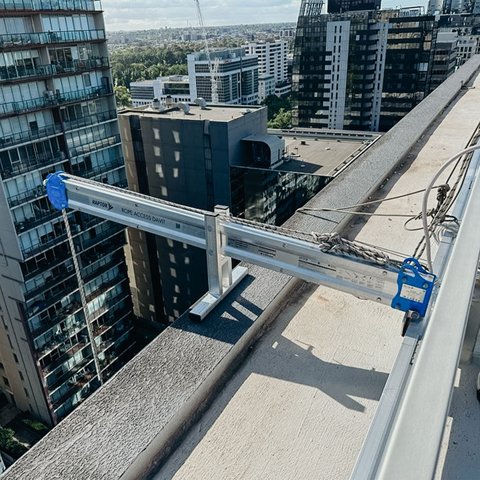

The OH404 a-frame needles are a mobile rope access system providing safe access to building facades in multiple configurations.
Needles work well on metal deck roofs where the load on the roof deck needs to be spread to avoid any damage to the roof area. As the needle is modular in design, it can be configured in length, height and movement providing a fit for purpose solution based on the specific needs of the project.
Rope access use
12kN rated single person use plus rescue/15kN fall arrest rated
400kg safe working load
Suited for parapet heights of 300mm
Available in 1200 or 1500mm extensions
Back span options 1800 or 2400mm
)
Key Features
Click the features to learn more
Available variations
)
Frame height: 400mm
Cantilever length: 1200mm
Back span: 1800mm
Frame height: 400mm
Cantilever length: 1500mm
Back span: 2400mm
