RUNG LADDER SYSTEMS
Kattsafe rung ladder systems are designed to be designated safe access for personnel to get to elevated areas. Modular components allow for maximum on-site flexibility and compliance assurance, while multiple configurations are available to ensure the perfect fit-for-purpose solution for any project.
Available with angled, caged and fall arrest devices to ensure continuous user safety.

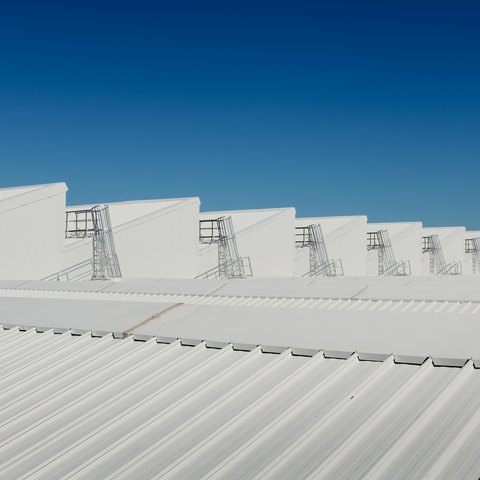

Mini angled rung ladders are suitable for access between varying roof levels up to 3.5m

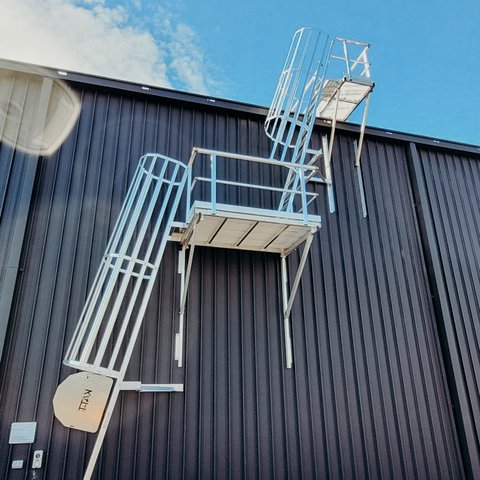

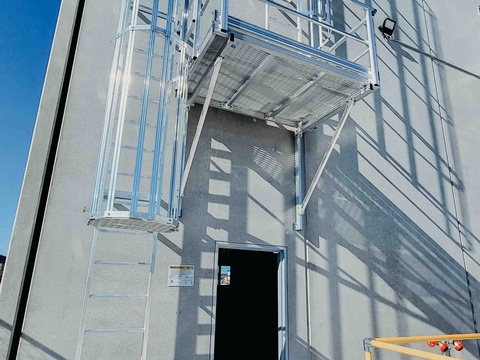

Angled rung caged ladders provide primary access to ceilings and main roof areas up to 6.0m and access between varying roof levels above 3.5m.

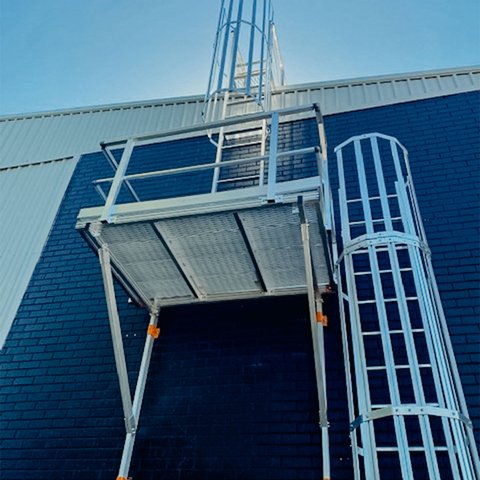

Vertical caged rung ladders provide primary access to ceilings and main roof areas up to 6.0m without the need for a fall arrest system.
Vertical fall arrest rung ladders provide primary access to roofs and elevated locations up to 6.0m.
The Kattsafe fold down ladder range is designed for ultimate user safety. Offering a pneumatic soft close design for access to ceilings spaces they are also industrial rated to 150kg.
Wall mounted or parapet/gutter mounted Kattsafe ladder support brackets are manufactured from profiled stainless steel and provide easy, secure access to roofs. The angle and pitch can be adjusted easily to suit the situation and they also have fixing slots to enable easy attachment to the structure.
Kattsafe portable ladders range in sizes from 1000mm to 5000mm and come with split feet to enable ground levelling. There is also a portable ladder storage bracket kit available to suit.
Kattsafe ladders dock provide maintenance personnel with a secure attachment point when accessing elevated areas. Made from high strength, lightweight aluminium the t-bolt fastener provides rapid installation with minimised drilling required.
Complementing the Kattsafe rung ladders are a variety of accessories including lockable cage gates and ladder access doors, midway and ladder head landing platforms, retrofit vertical fall arrest line brackets and retractable stiles.
Modular design for cost effective solutions
The proprietary fall protection system has various configurations which can incorporate enclosed cages or ladder fall arrest systems depending on ladder height and application.
18 multiple ladder system configurations providing a solution for any situation
Prefabricated modular components provide easy on-site assembly with no welding required

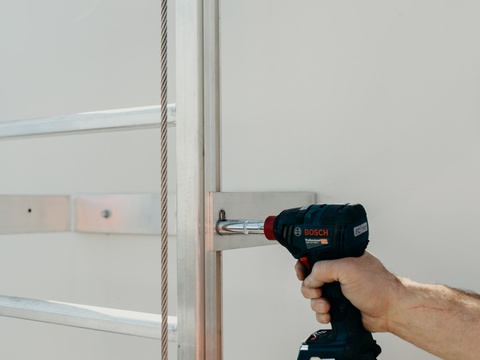

Rapid install, unique system flexibility based on T-Slot connection system
Precision robotic manufacture, ensuring quality and consistency
Power grip rungs with slip testing to Australian Standards
10 year system warranty
Safe and compliant access at any height
The Kattsafe Ladder Systems are manufactured to Australian Standard AS/NZS 1657:2018, and provide height access up to 6.0m and beyond. This makes our solution one of the most versatile and compliant ladder systems on the market.
We have angled and vertical ladder systems up to 6.0m, the maximum permitted height of any single ladder system.
Access height can be extended beyond 6.0m through the application of our RL429 change of direction platform.
