Rope access
Rope access systems are used to gain access to a façade or workface by vertical suspension using rope access harnesses and PPE equipment.
It involves a main working line for access and work positioning around a building façade for maintenance purposes, and a backup safety line used to minimise user risk.
)
)
Providing effective rope access
There are multiple systems that can be used for rope access and the selection like all fall protection systems, must be determined by application, frequency of use and operator competency.

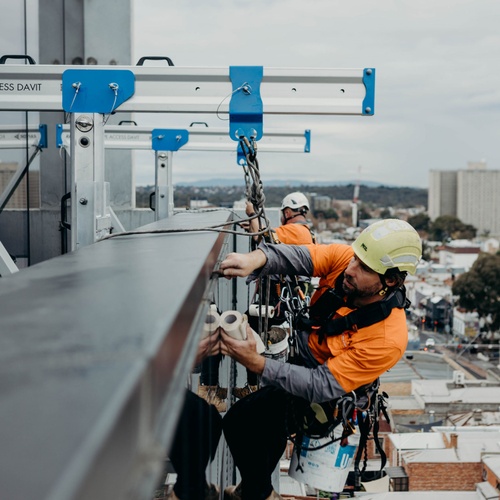

Of the systems available, davits are used frequently when access is required for facade maintenance. With many benefits, such as multiple user capability, effortless mobility and minimal aesthetic impact, they allow operators to safely access the facade without applying load to the curtain wall.
Rope access needle systems are similar to davits, however they differ in that rather than just one area of attachment to the roof structure they have several which allows for the load to be spread. They are particularly well suited for metal deck roofs.
Anchors are yet another option. They can be a very cost effective choice but do have limitations in that they cannot be used if the operator is required to abseil over a fragile curtain wall or glass facade.
Choosing a rope access system
When choosing a rope access system for your building, there are four main factors to consider:
What tasks will need to be carried out?
How frequently will the tasks need to be carried out?
How competent are the personnel performing the tasks?
What are the risks associated with the tasks?
Once these three factors have been determined, use the table below to help evaluate your requirements.
| Maintenance Category | Item | Maintenance Frequency | Example Solution |
|---|---|---|---|
| A Priority | Curtain wall / signage | Frequent | Multi-directional fall protection (permanent) i.e. rigid rail, rolling davit systems |
| B Priority | Individual windows / louvres | Periodic | Fixed fall protection (permanent) i.e. rope access needles, rope access davits |
| C Priority | General facade access | Infrequent | Active fall protection i.e. abseil anchor points |
Our rope access solutions
)
Rigid railsRigid rails offer continuous attachment to help personnel navigate atriums and facades with the ability for multiple users to work off the one system.
)
Anchor pointsAnchor points allow personnel to safely access and work on roofs and facades by providing a secure anchor to attach to while at heights.
)
Davits and needlesDavits and needles provide safe access over parapets and curtain walls to enable personnel to carry out maintenance tasks.
)
)
)
Take the risk out of height safety designs
Our height safety system design specialists have a deep understanding of industry requirements and help you meet your obligations for fully compliant systems right from the start.
Exceed compliance
Minimise ongoing costs
Reduce rework
Protect lives
)
)
)
)
)
)
)
